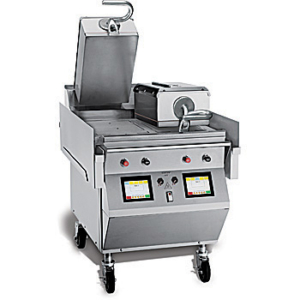

Taylor L820 Electric 2 Platen 24


Best Seller!

The Taylor® L820 grill line features the latest in efficiency, safety and productivity. Just a press of a button cooks healthy seafood, veggie or turkey burgers, grilled sandwiches and much more. Revolutionary two-sided grilling cooks a frozen patty two-thirds faster than traditional flat grills. With programmable cook times, pre-set temperatures and consistent product pressure, you can cook a variety of menu items throughout the day.

 Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Taylor L820 Electric Two-Sided Grill Features

One Touch Menu

Selection One touch menu selection automatically provides accurate TIME, TEMPERATURE, and GAP settings for every product.

Programmable Controls

Microprocessor controls are programmable for simplified operator operation. Offers flexibility for future menu items and product specification changes at the restaurant level.

External USB Port

External USB port allows user access to upload new menu and promotional items. Menu changes can be sent electronically to other store locations saving time and eliminating operator error.

Upper Platens

Two upper platens will close automatically to the preset gap setting with the touch of one button. Air cylinder system provides quiet, simple, trouble-free operation of the upper platen. As a safety feature, platen will automatically open at loss of power, or if an obstruction is detected.

Precise Automatic Gapping

Solid platform with 3-point reference plane and fixed (home) reference point. Once programmed, the upper platen automatically achieves accurate and consistent gaps, every time. Precise, repeatable gapping assures product safety and better quality finished product.

Cooking Zones

Two separately controlled cooking zones. Each zone has three independent heating elements, and two in the upper platen to assure even temperatures and quick recovery.

Side-To-Side Release Material Protects the entire upper platen cooking surface and makes cleaning easy. Improved installation and removal process away from hot surfaces.

Patty Cook

Position Placement Guide Lower cooking surface is etched for a permanent patty placement guide for two-sided cooking.

Taylor L820 Specifications


See the Electrical chart for the proper electrical requirements. Manufactured to

be permanently connected. Consult your local Taylor distributor for receptacle

specifications as local codes allow. Restraining cable included.


  • Cleaner (1qt)
  • Grease cans (two, mount on each side)
  • Release sheets; includes clips and retainer (one box of 9)
  • Squeegee (one)


  • Cleaning Pads (10 qty.)
  • Cleaning Pad Holder
  • Gap Gage (0.255)
  • Grill Scraper
  • Tool Holder
