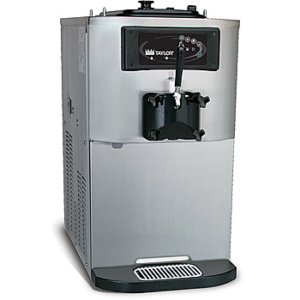

Taylor C708 Soft Serve Freezer

Taylor-logo

The Taylor C708 offers all the popular soft serve variations from low- to non-fat ice creams or yogurt.

Heat Treatment System

Provides a daily heating and cooling cycle to safely maintain dairy products up to two weeks before a complete disassembly and cleaning is required.

 Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

C708 Soft Serve Freezer Single Flavor, Pump, Heat Treatment Features

Offer all the popular soft serve variations from low- to non-fat ice creams or yogurt.

Heat Treatment System

Provides a daily heating and cooling cycle to safely maintain dairy products up to two weeks before a complete disassembly and cleaning is required.

Freezing Cylinder

One, 3.4 quart (3.2 liter).

Mix Hopper

One, 20 quart (18.9 liter). Refrigerated to maintain mix below 41ºF (5ºC) in Auto and Standby modes. Simplified air/mix pump delivers the precise amount of air and mix to the freezing cylinder, and reduces operator parts.

Indicator Lights

Mix Low light alerts the operator to add mix. When the Mix Out light flashes, the unit automatically goes into Standby mode to prevent damage.

Touch Screen Controls

Microprocessor touch controls are embedded in durable tempered glass panel. Multiple languages are selectable. Viscosity is continually measured to dispense soft serve desserts. Soft lock out features improve reliability. Temperatures in the hopper or freezing cylinder may be displayed at any point of operation. History of temperatures and times during the last 366 heat cycles may be viewed from the fluorescent display.

Standby

During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.

Door Interlock System

Protects the operator from injury as the beater will not operate without the dispensing door in place.

Taylor C708 Specifications

Electrical

One dedicated electrical connection is required. See the Electrical chart

for the proper electrical requirements. Manufactured to be permanently

connected. Consult your local Taylor distributor for cord & receptacle

specifications as local codes allow.

Beater Motor

One, 1.5 HP.

Refrigeration System

One, 9,500 BTU/hr. R404A.

Air Cooled

Minimum 6” (152 mm) on both sides and place the back of the unit against

a wall to prevent recirculation of warm air. Minimum air clearances must be

met to assure adequate air flow for optimum performance.

Optional air discharge chute directs heated air exhaust upwards. No

clearance required on right side if air discharge chute is used.

Water Cooled

Water inlet and drain connections out rear panel 3/8” FPT.

Options

  • Cart with casters-height to top of hopper cover: 59-5/8” (1515 mm)
  • Cone Dispenser
  • Decals – Vanilla or Flavor Burst Cone
  • Hopper Locks
  • Legs – [increase height of unit by 4-1/4” (108 mm)]
  • Syrup Rail (front mount requires special cart with rear door)
  • Syrup Rail Kit (side mount)
  • Top Air Discharge Chute (air cooled only)
