Model 8756

Taylor-logo

Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet. Serve two separate soft serve flavors, or an equal combination of both in a twist.

 Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

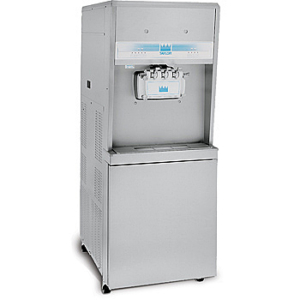

Taylor 8756 Soft Serve Freezer Twin Twist, Pump Features

Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet. Serve two separate soft serve flavors, or an equal combination of both in a twist.

Freezing Cylinder

Two, 3.4 quart (3.2 liter).

Refrigerated Mix Storage Cabinet

Lower front mix cabinet is independently refrigerated to maintain mix below 41ºF (5ºC). Door is hinged on the right. Two, 9 gallon (34.1 liter) mix tanks. Two air/mix pumps deliver the precise amount of air and mix to the freezing cylinder.

Indicator Lights

Mix Low light alerts the operator to add mix. When the Mix Out light flashes, the unit shuts down automatically to prevent damage.

Electronic Controls

Finished product quality is monitored by SoftechTM controls that measure viscosity.

Standby

During long no-use periods, the Standby feature maintains safe product temperatures in the freezing cylinder.

Soft Serve Freezer

Twin Twist, Pump

Taylor 8756 Specifications

Electrical

Two dedicated electrical connections are required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.

Beater Motor

Two, 1.5 HP.

Refrigeration System

Two, 9,500 BTU/hr. R404A

Mix Cabinet, 1,100 BTU/hr. R404A. (BTUs may vary depending on compressor used.)

Air Cooled

Minimum 3” (76 mm) around all sides and 12” (305 mm) on top. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Water Cooled

Water inlet and drain connections under side of base 1/2” FPT

Taylor 8756 Options

Cone Dispenser

 Draw Valve Lock Kit

 Panel Spinner

 Sneeze Guard

 Syrup Rail Kit (side mount)
