Offer all the popular soft serve variations from low or nonfat ice creams to custards, yogurt and sorbet. Serve two separate soft serve flavors, or an equal combination of both in a twist.

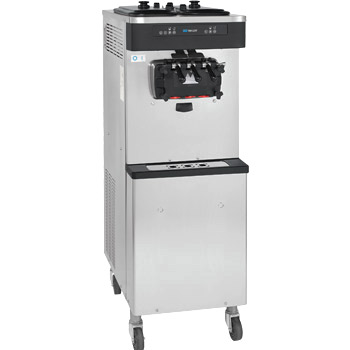

Taylor C791 Soft Serve Freezer Twin Twist Features
Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet. Serve two separate soft serve flavors, or an equal combination of both in a twist.
Freezing Cylinder
Two, 3.4 quart (3.2 liter).
Mix Hopper
Two, 14 quart (13.2 liter). Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC) during Auto and Standby modes.
Indicator Lights
Mix Low and Mix Out light alerts operator to add mix. Audible alarm may be enabled to sound when mix is low.
Electronic Controls
Softech™ is our exclusive microprocessor based master control that regulates refrigeration by measuring product viscosity to maintain consistent quality.
Standby
During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.
Freezer Door
A specially designed thermo-plastic door allows quick ejection of product. Push forward on the ergonomic draw handle to dispense. Self-closing draw handles are standard.
Door Interlock System
Protects the operator from injury as the beater will not operate without the dispensing door in place.
Pull Handles
Convenient recessed pull handles for ease in moving the equipment for cleaning.
Two Locking Casters
Front casters have a locking feature for operators to lock to maintain equipment in place. The locking casters can be released to move the equipment for cleaning.
Taylor C791 Specifications
Electrical
One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Unit supplied with cord and plug. Consult the international Taylor distributor for cord & receptacle specifications for 50 Hz. equipment.
Beater Motor
Two, 1.5 HP.
Refrigeration System
One, 9,500 BTU/hr. R404A.
Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a. (BTUs may vary depending on compressor used.)
Air Cooled
Minimum clearance of 3” (76 mm) around all sides. Install the deflector provided to prevent recirculation of warm air. Minimum air clearances must be met to assure adequate air flow for optimum performance.
Water Cooled
Water inlet under side of base 1/2” FPT.
Taylor C791 Options
- Cone Dispenser
- Draw Valve Lock Kit
- Hopper Agitators
- Rear Mix Lights
- Syrup Rail Kit (side mount)
