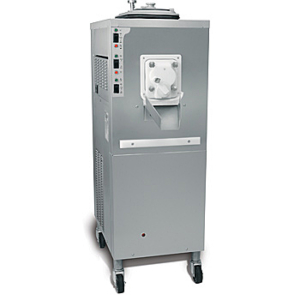

Taylor C001 - Continuous Batch Freezer One Flavor


Best Seller!

The Taylor C001 offers super premium frozen custard, low overrun ice cream, or sorbet.

 Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Taylor C001 Continuous Dispensing Custard Freezer Features

Offer premium frozen custard, low overrun ice cream, or sorbet.

Mix Hopper

One, 20 quart (18.9 liter). Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC).

Indicator Lights

In order from top to bottom, separate lights indicate when mix is low, refrigeration on, pre-chill mode, and scraping/ejection motor on.

Product Chute

Ribbons of frozen product flow down the chute to separate the dipping cabinet. Easily removable for cleaning or moving the dipping cabinet.

Mix Flow Regulator

Easy to read markings allow the operator to dial in the correct amount of mix flowing into the freezing cylinder for proper consistency. Adjusts for operation from the front, back, or side, depending on space requirements.

Safety Features

  • To protect users from accidental injury:
  • Beater motor will not rotate unless the door is in place.
  • Finger guards installed in the opening of the dispensing door.

Taylor C001 Specifications


One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.

Beater Motor

One, 1.5 HP.

Refrigeration System

One, 14,000 BTU/hr compressors (nominal rating). R404A. Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a. (BTUs may vary depending on the compressor used.)
